Dawn Villa — parametric GFRC facade
225 unique GFRC panels, 19,178 sq ft of sculptural envelope, modulated from parametric Grasshopper geometry to anchored panel on site.
Dawn Villa is a private heritage residence in Puerto Cancun, designed by Creato Arquitectos under the studio's guiding concept — "architecture is conceived as sculpture." The envelope can't be cast in place: the geometry is curved, sculptural, cantilevered, with 11 main facades (A → K) and 18 typologies once variants are counted.
To make that geometry buildable, MODECO modulates the facade before it is fabricated — breaking the surface into pieces that can be moulded, transported and anchored without flattening Creato's curve. The result is 225 unique GFRC panels — none repeated — that snap together as a sculptural puzzle calibrated to the millimeter.
It's the case study that best demonstrates MODECO's method, because the entire chain is documented: from Creato's render to the panel anchored on the main elevation in Puerto Cancun.
What this case study proves
MODECO can modulate complex parametric geometry without asking the architect to simplify the design. Modulation is a translator, not a censor.
A unique-mold-per-panel flow is industrializable. 225 non-repeating molds across 22 months, holding visual tolerance on site.
The render → parametric → mold → fabrication → transport → installation chain is fully traceable, which is the only way to win contracts with top-tier studios that demand weekly reporting.
The Cancun plant can serve heritage private residences in Quintana Roo — relevant for the next wave of branded residences across the Riviera Maya, and for private clients across the Caribbean looking for a regional supplier with international technical capacity.

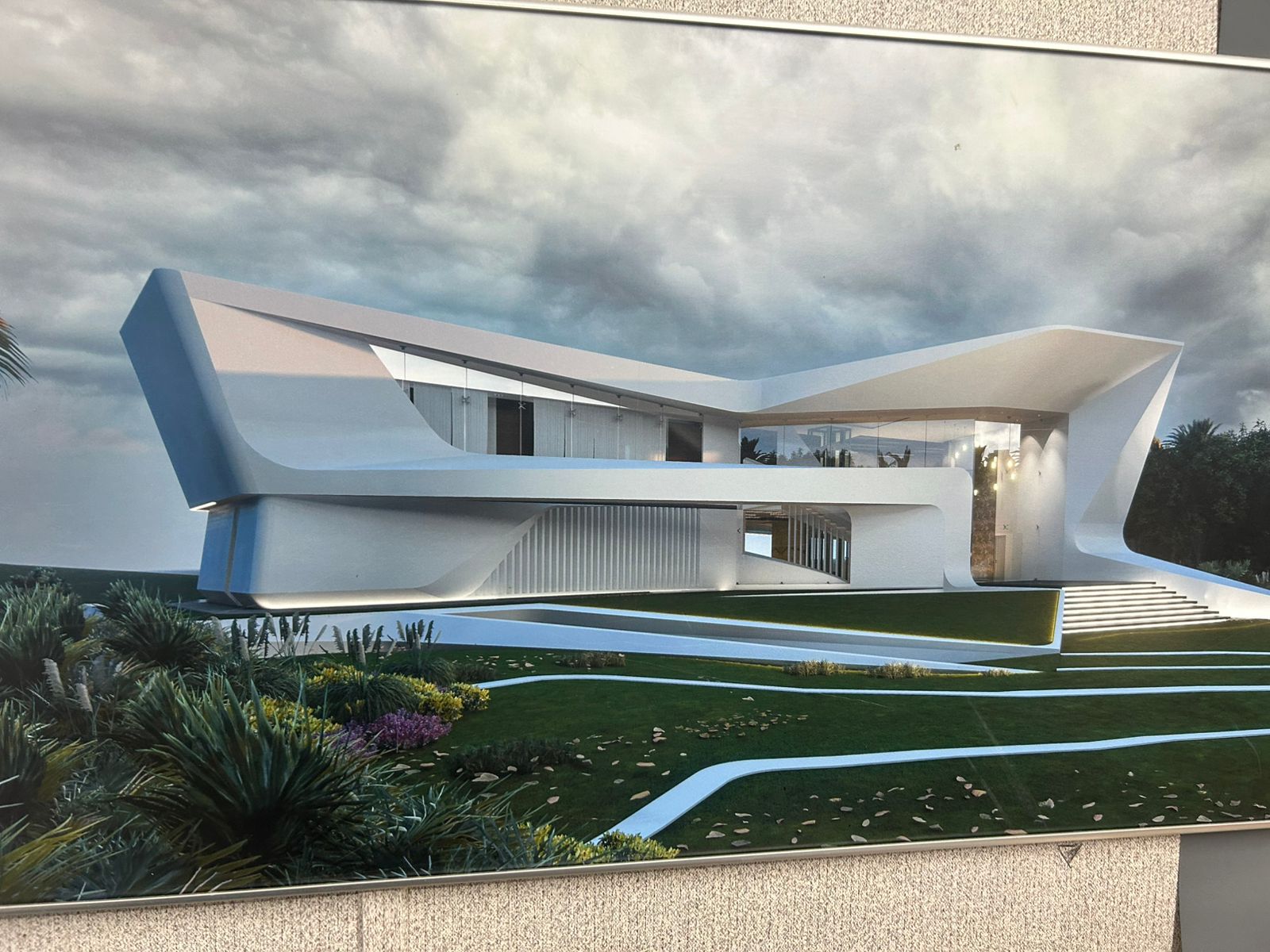

Render — Creato Arquitectos
Creato delivers the project in architectural language: white curved surfaces with wing-like cantilevers, front, rear and lateral elevations following one continuous plastic rhythm. The question for MODECO is not how it looks — it's how to break it down so it can be fabricated.
Parametric modeling — Grasshopper / Rhino
MODECO translates the surface into parametric geometry controlled in Rhino + Grasshopper. This is where modulation is decided: joints, flat vs. single-curved vs. double-curved panels, concealed anchor locations. Each panel receives a unique code (D-65, D-66...), its theoretical weight and the exact coordinate of its final position.
Mold — one per panel, none repeated
The mold is the industrial bottleneck for GFRC: every unique panel needs its own mold. With 225 non-repeating pieces, MODECO industrialized the flow to deliver roughly one mold per week without sacrificing ±2 mm tolerance on curved surfaces.
Fabrication — spray-up, cure and finish
GFRC is sprayed onto the mold, perimeter-reinforced with a steel back-frame, controlled-cure, and finished with a uniform matte white surface. Panels are coded, dimensionally and visually QC'd, and moved to staging. Status as of Apr 26, 2026: 130 cast (58%), 125 with finish complete (56%).
Transport — workshop to site
Each panel travels with its code and installation sequence. The heaviest pieces — up to 2,879 kg (6,348 lb) — require dedicated flatbed, validated route, and on-site maneuver coordinated with the GC. Status: 119 panels delivered to site (53%).

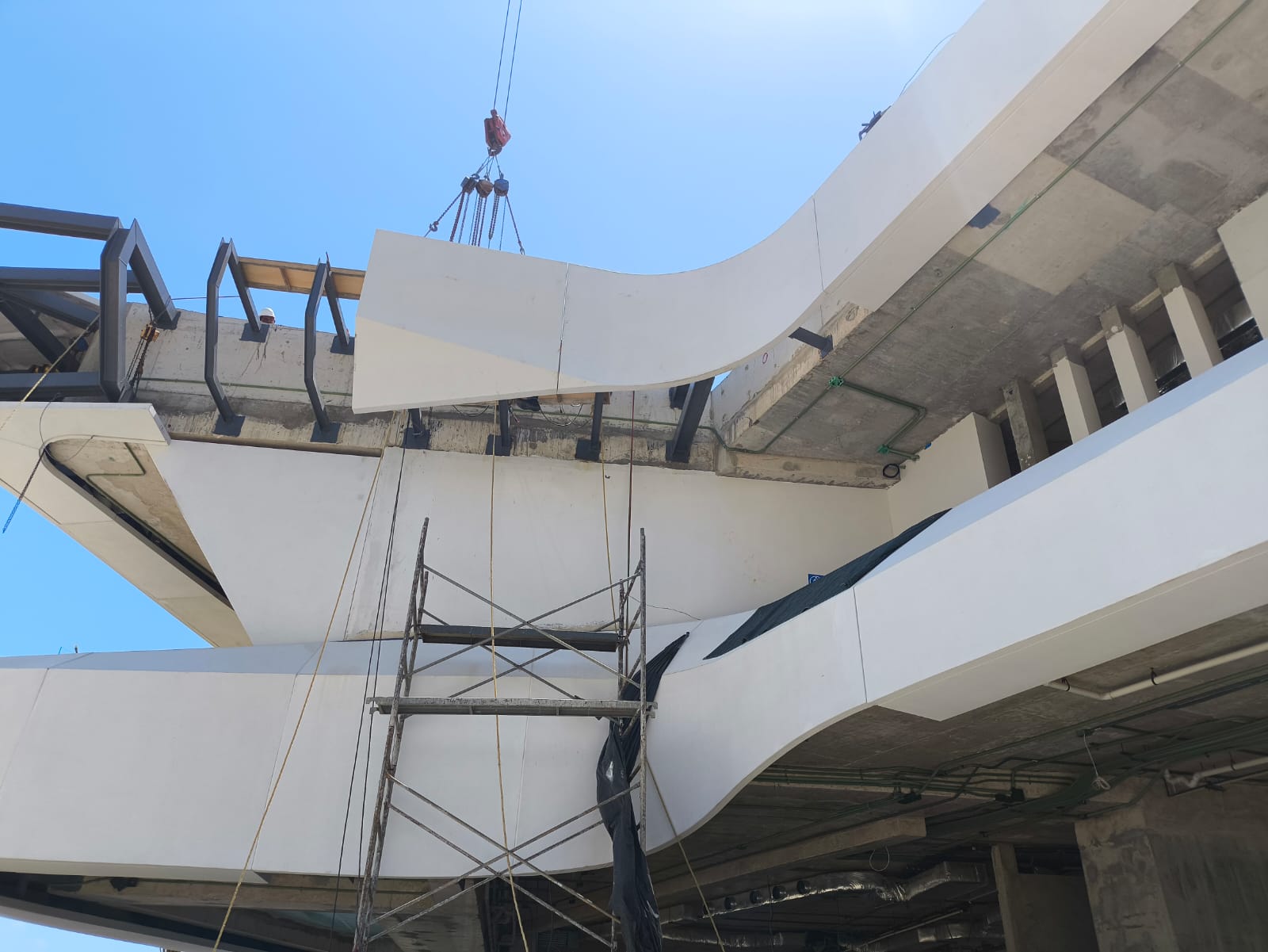

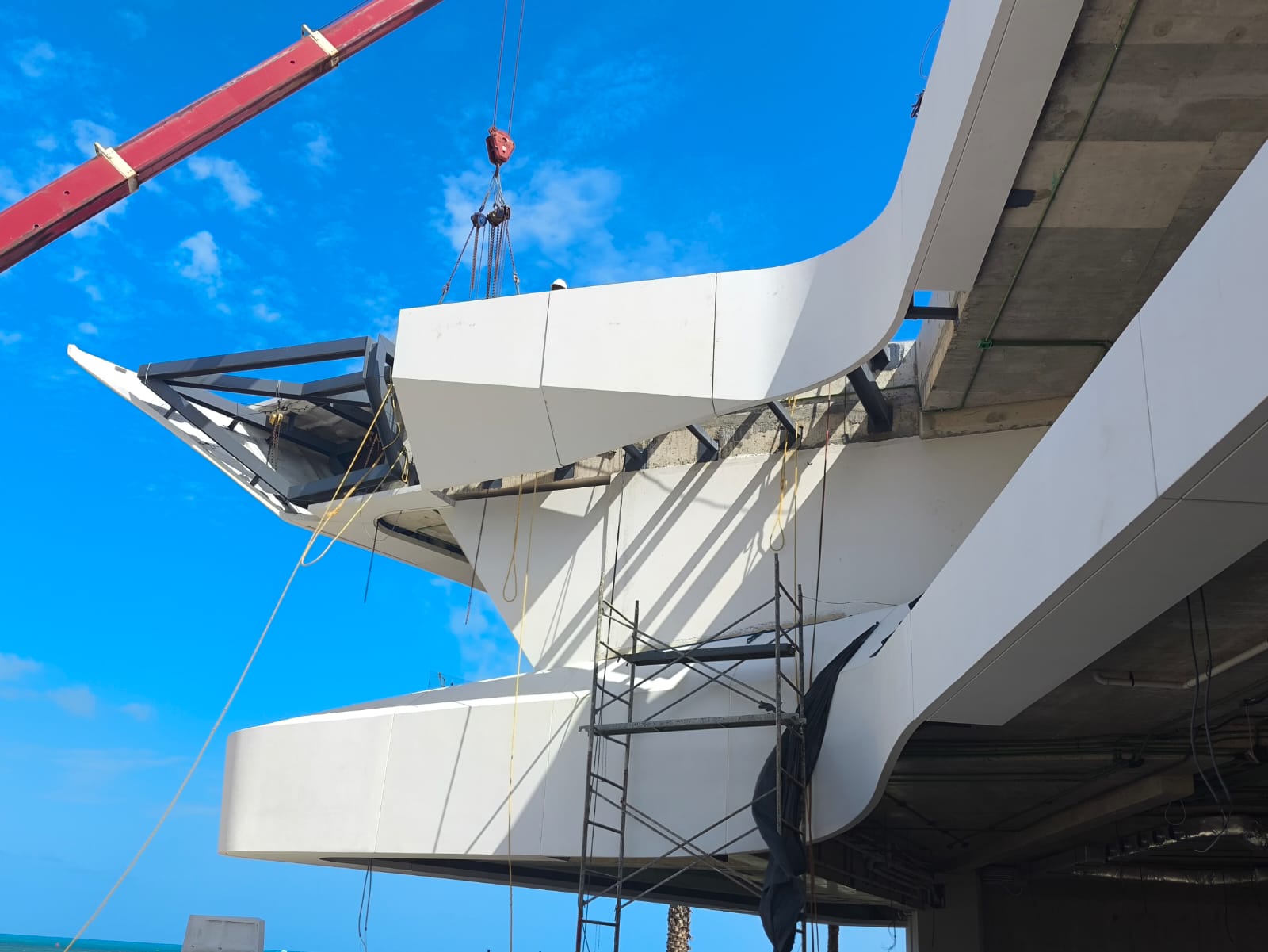

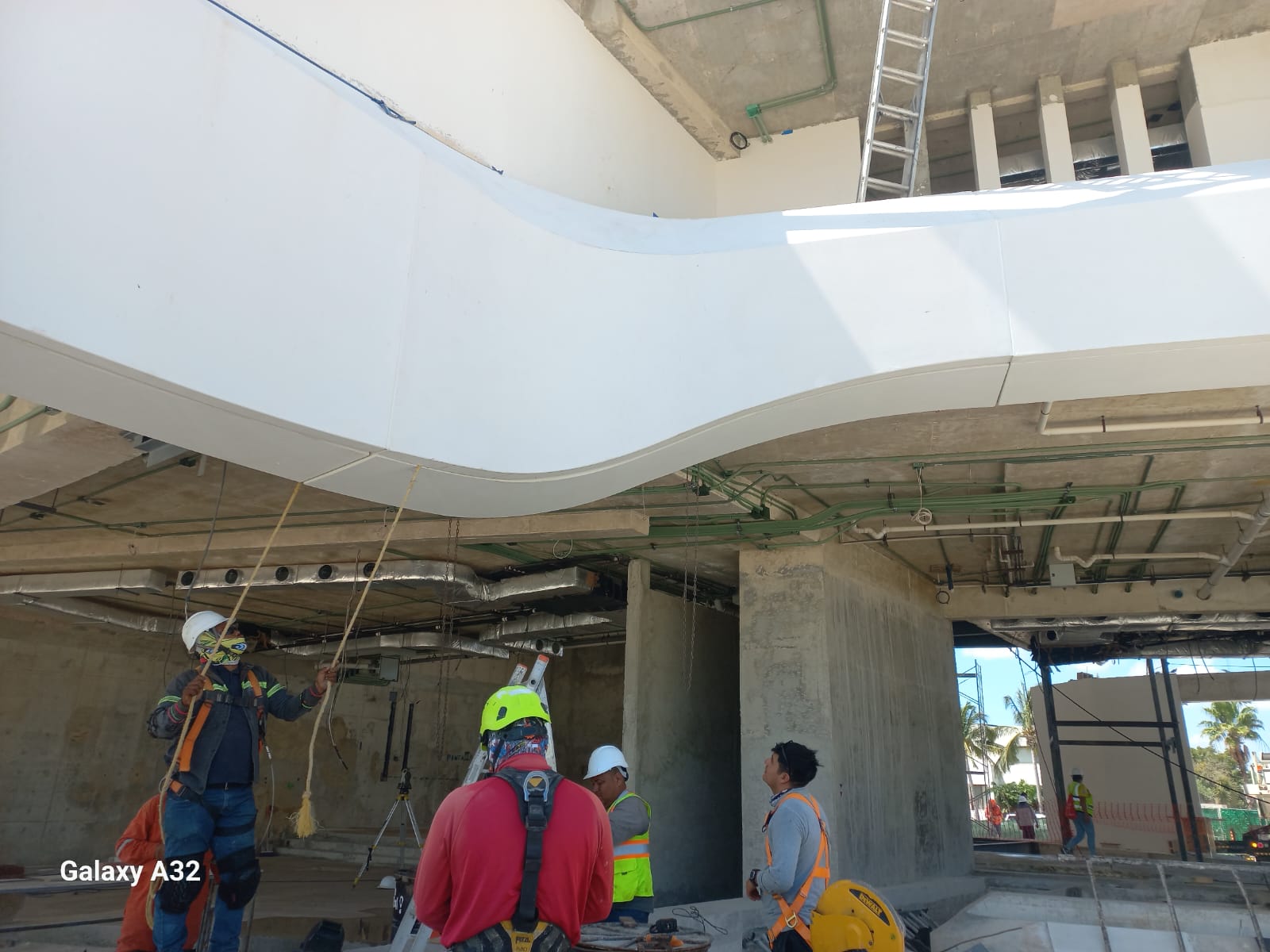

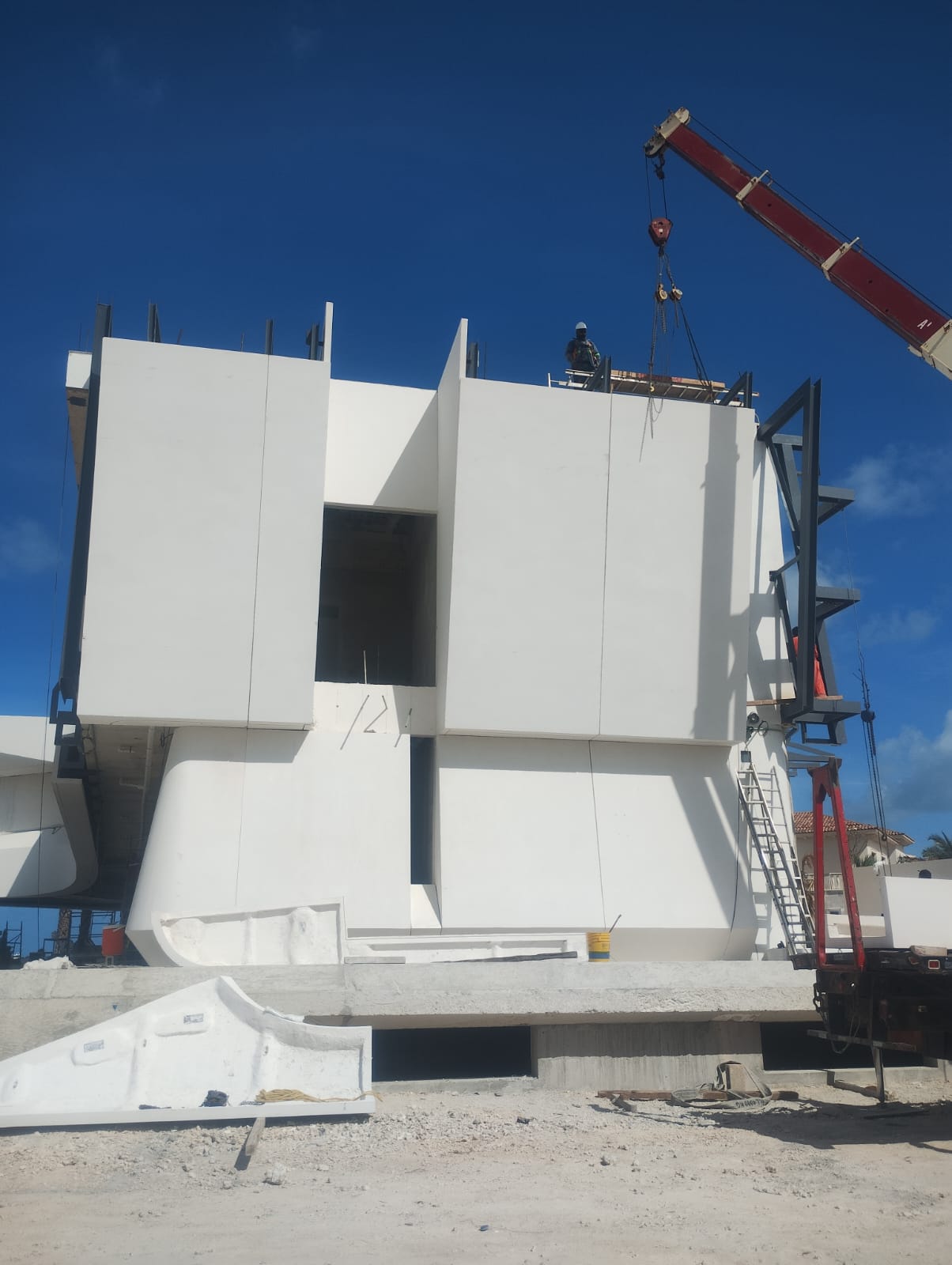

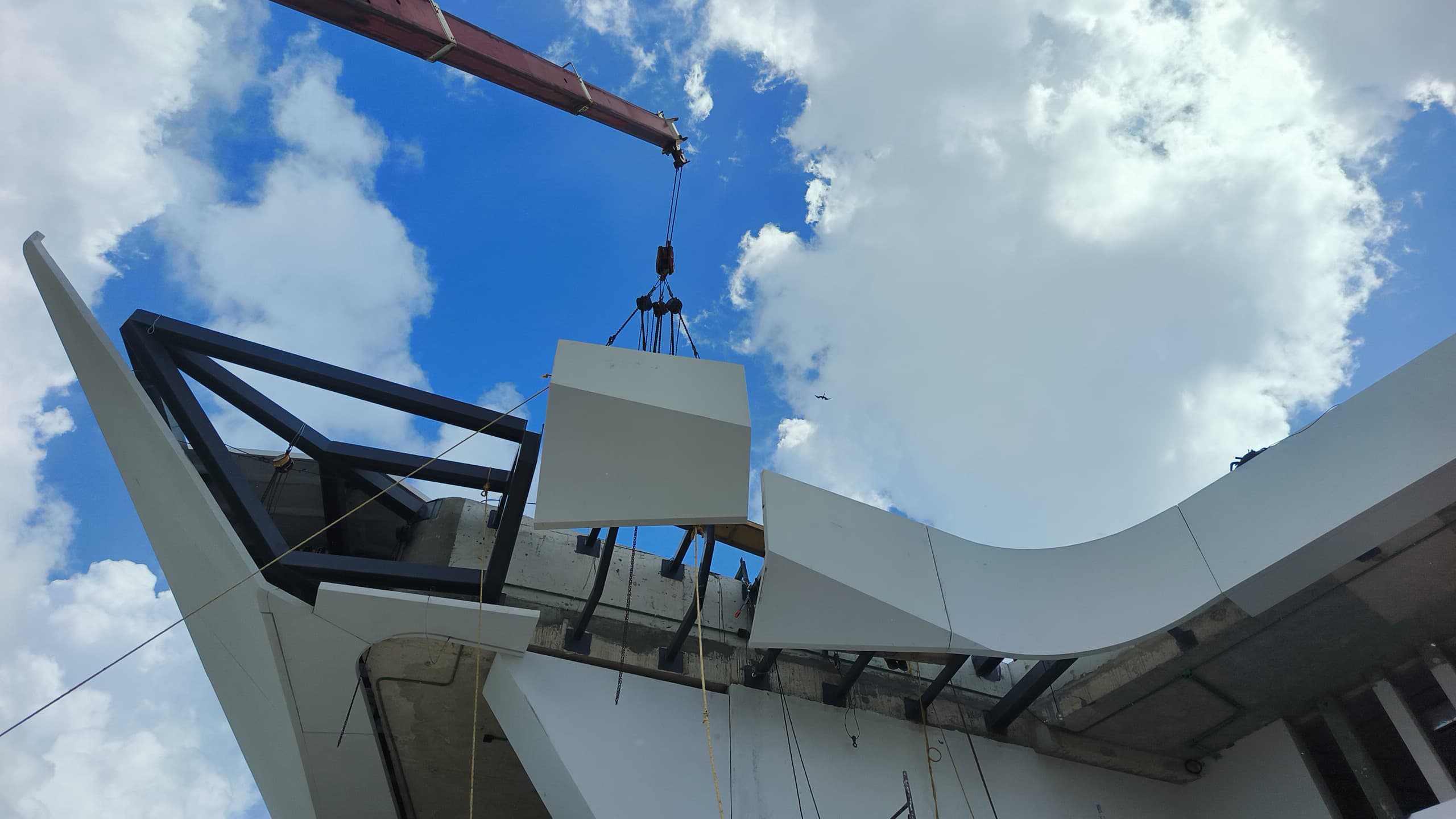

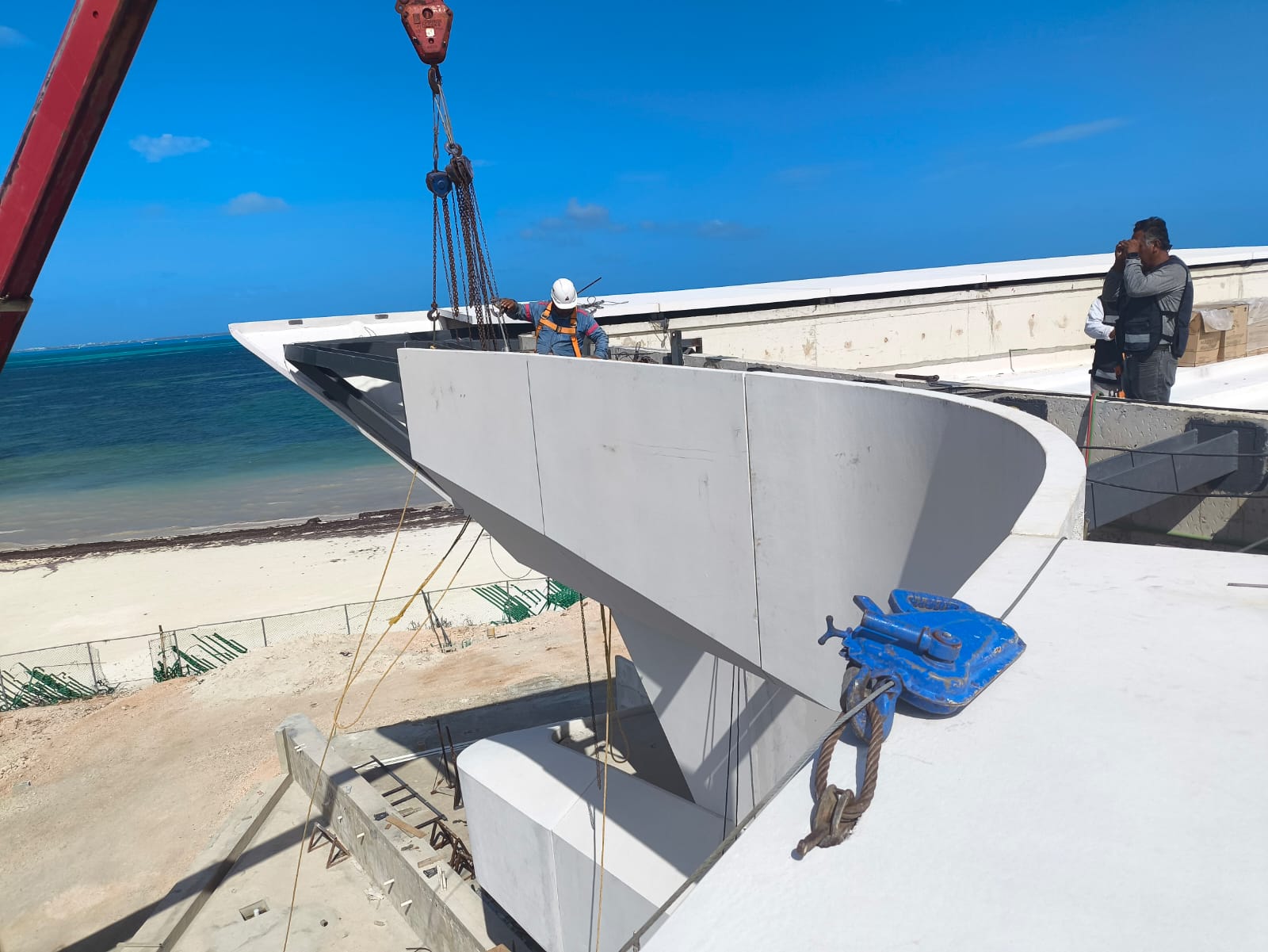

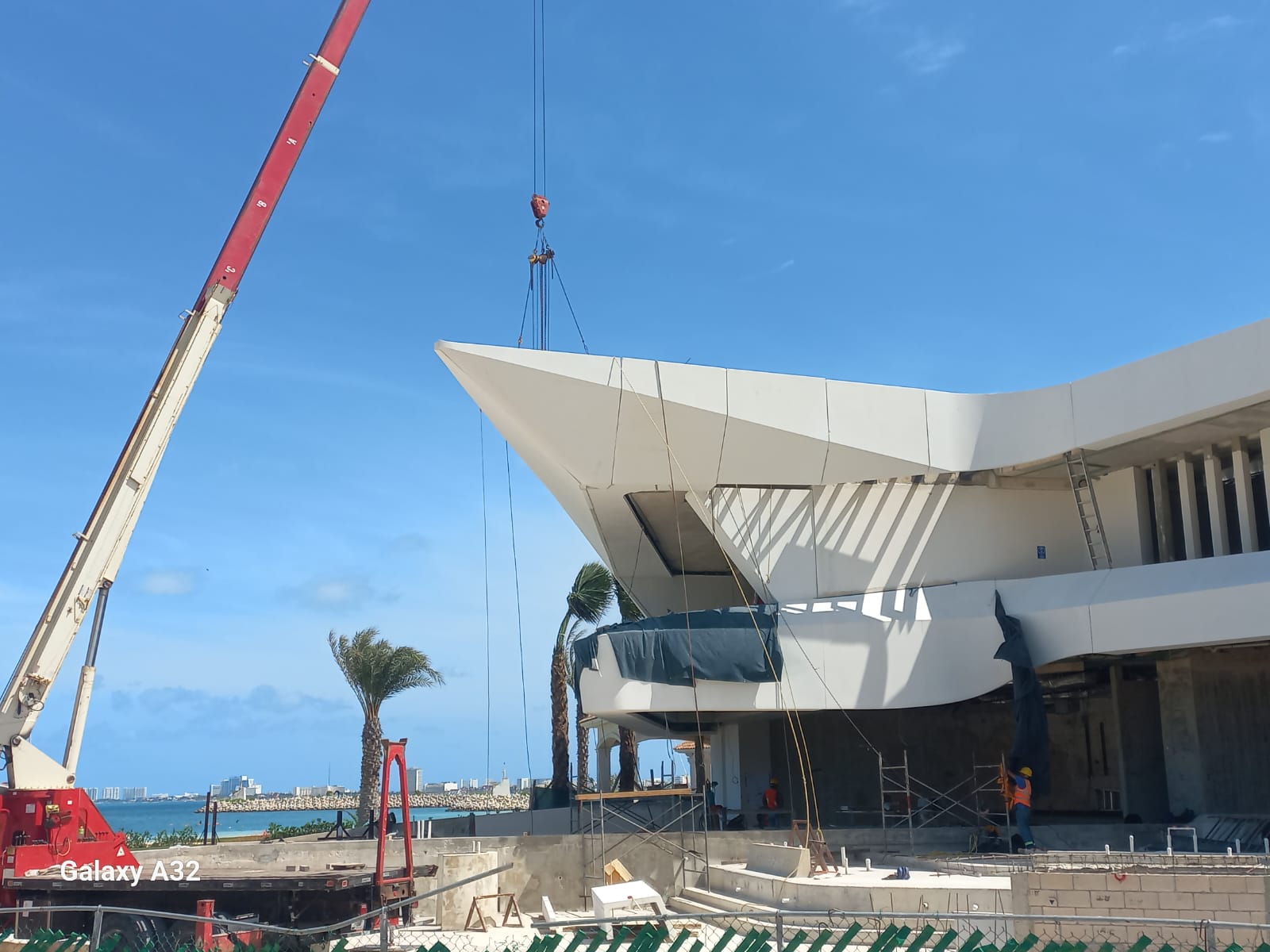

Installation — the coordinate locked 18 months earlier
Crane lift, anchor to substructure, tolerance adjustment, joint sealing. Each panel has exactly one correct position — the coordinate locked in during the parametric phase. Status as of Apr 26, 2026: 111 panels installed of 225 (49%), 865.65 m² (9,318 sq ft) of facade closed.
- Material
- GFRC
- Finish
- Blanco mate uniforme
- Unique panels
- 225
- Envelope area
- 19,178 sq ft
- Facade typologies
- 11 fachadas · 18 tipologías
- Panel weight range
- 825 – 6,348 lb
- Process
- Spray-up + bastidor de acero
- Modulation software
- Rhino + Grasshopper
- Reference standards
- ASTM C1666 · PCI MNL-128
"Sculpted in pure white volumes and floating planes — designed to dissolve the boundary between architecture and sea."
